DC to DC Converters

Large Range of DC to DC Converters used in a wide variety of mission-critical applications and qualified to the most stringent standards.

hero about img

Our DC to DC Converters are used in a wide variety of mission-critical applications and are qualified to the most stringent standards.

DC to DC Solutions to meet your specific requirements provided upon request.

For any Inquires regarding existing PS-Model Numbers, please contact us for more information.

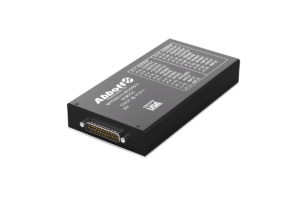

LDC200 Series – 200 Watt 28V DC to DC Converters

LDC200 DC DC Converter

High-efficiency, compact MIL-STD-704 input power (18-36V) DC-DC single output power converter for rugged environments and demanding, mission-critical loads. With ultra-precise ±0.1% regulation, 90%+ efficiency, and extremely fast transient response, the LDC200 series units are ideal point of load converters for sensitive equipment. Designed to meet MIL-STD-461 EMI/EMC and MIL-STD-810 environmental requirements in an all-in-one package. 3.3 to 28VDC Outputs standard. Factory Configurable.

Explore This Product or Download Spec Sheet






Legacy DC to DC Converters

Abbott maintains full control of our configurations, building all assemblies in house. We guarantee performance over the full life of a program and do not obsolete products. This also allows us to not only accommodate requests for modifications to units quickly and cost-effectively but also allows us to support legacy products, shown below.

PST-1 – 150 Watt DC to DC Triple Output Converter for Railway Applications

Nominal 36 vdc input (standard lrv power bus) wide input range 2 to 1 surge capability high isolation protection rugged construction wide temperature range.

Download Spec Sheet

PST-2 – 150 Watt Triple Output DC to DC Converter for Railway Applications

Nominal 74 VDC input (standard locomotive power bus) Wide DC input Wide temperature range High-reliability Rugged construction.

Contact Us for More Information

PST-3 – Low Voltage DC to DC Power Converter for Railway Applications

Nominal 36 VDC input (standard LRV power bus) 13.6 VDC output Wide input range Wide temperature range High isolation Rugged construction.

Contact Us for More Information

PST-4 – Low Voltage DC to DC Power Converter for Railway Applications

Nominal 74VDC INPUT Wide DC Input High-Reliability Rugged Construction Wide Temperature Range.

Contact Us for More Information

PSA-1 – DC to DC Converter for Aircraft Applications

RTCA DO160 qualified Adjustable output voltage Input meets MIL-STD-704 Fully isolated.

Download Spec Sheet

PSA-2 – DC to DC Converter for Aircraft Applications

RTCA DO160 qualified wide input range meets mil-std-704 fully isolated.

Download Spec Sheet
