Power Conversion Capabilities

Design, manufacturing, test, and lifecycle support of mission critical power conversion

Various military and critical applications each present different demands at the equipment power interface. Abbott Technologies designs, manufactures, tests, and sustains the hardware that converts platform power into the clean, quiet, regulated DC that a mission depends on. With in house design and manufacturing capability, we can provide catalog and modified-standard products, designs engineered to your specification or source-control drawing, and build-to-print manufacturing. We can also provide replacements for units no longer supported by other manufacturers.

Abbott Technologies has served many programs in the aerospace, defense, transportation, and communication industries since 1961. Customers include departments of the U.S Government, armed forces, and major prime and sub-contractors.

Product Range at a Glance

Product family	Power range	Frequencies	Construction
AC-DC power supplies	5 to 2500 W	47–440 Hz universal	Single and three-phase, power factor corrected; isolated and non-isolated; sealed to IP67
DC-DC converters	5 to 2500 W	DC (704 / 1275 buses)	Wide input range, step up and down; isolated and non-isolated
DC-AC inverters	Various	50 / 60 / 400 Hz out	Linear and switching; true sine wave
Transformer rectifier units	50 W to 60 kW	60 and 400 Hz	TRU and ATRU; three-phase; regulated and unregulated; high MTBF, low THD
Transformers and inductors	1 W to 100 kW	60 Hz, 400 Hz, variable 800 Hz–5 kHz	Single and three-phase; toroidal, laminated, ferrite, amorphous cores; open and encapsulated
EMI filters	mA to 1000 A	AC and DC line	Differential and common mode, to invoked MIL-STD-461 limits
PFC front ends	500 to 1500 W	47–440 Hz	Active PFC; 115 V or universal input; 190–450 VDC output

Representative Models

Designed, Built, and Tested in the USA.

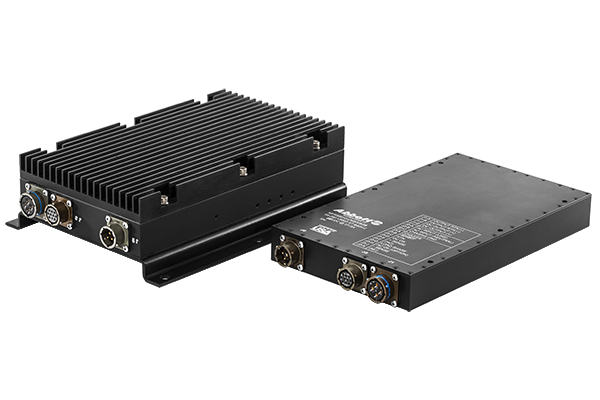

CM500 Series 500 watt single-phase AC-DC power supplies — **CM500 Series.** 500 W single phase, sealed AC-DC.

E Series 400 Hz encapsulated MIL-PRF-27 transformers — **E Series.** 400 Hz MIL-PRF-27 QPL transformers.

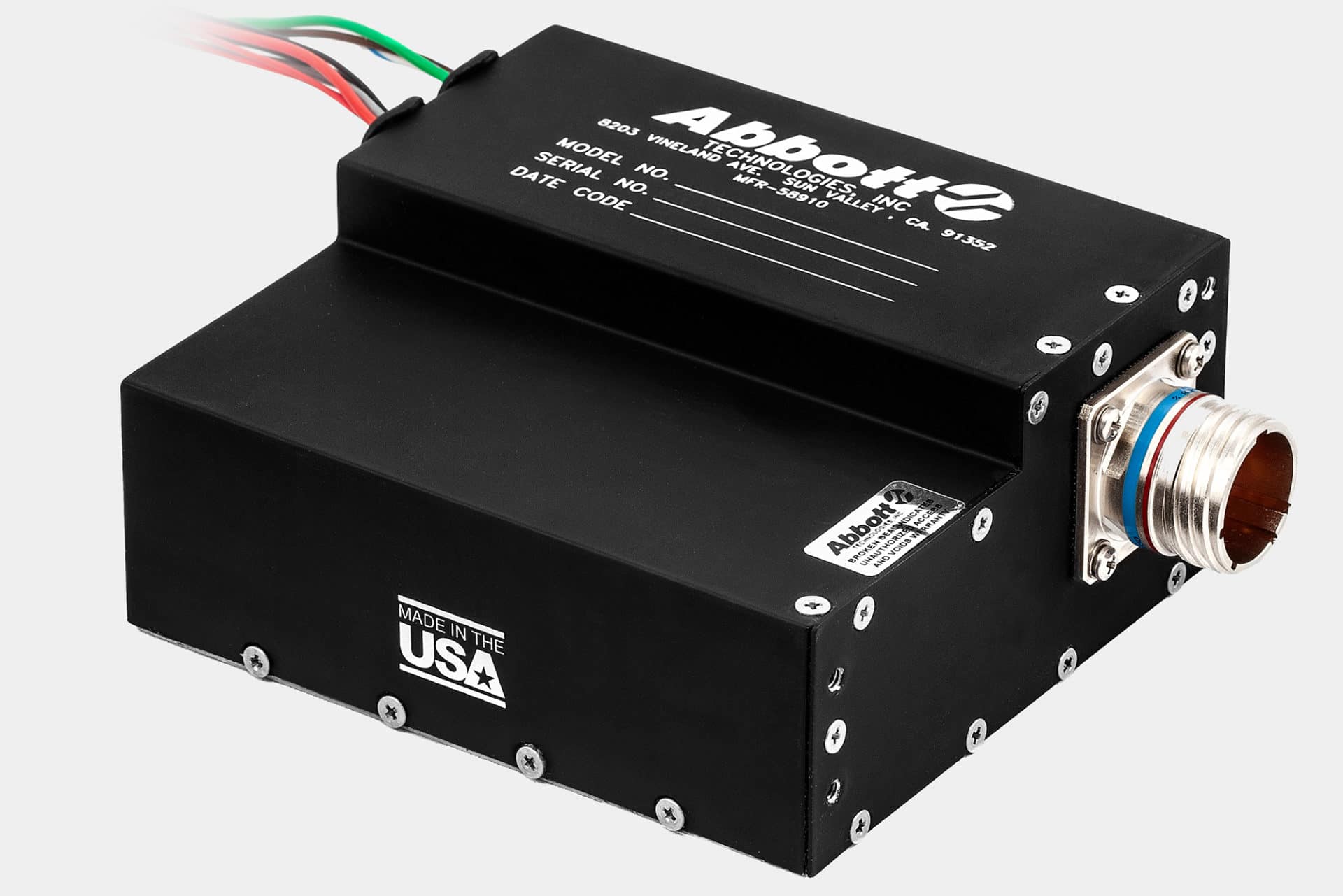

TR400 modified-standard ATRU, 400 Hz three-phase, multi-output — **TR400 Modified-Standard ATRU.** Multi-output, adapted to a program interface.

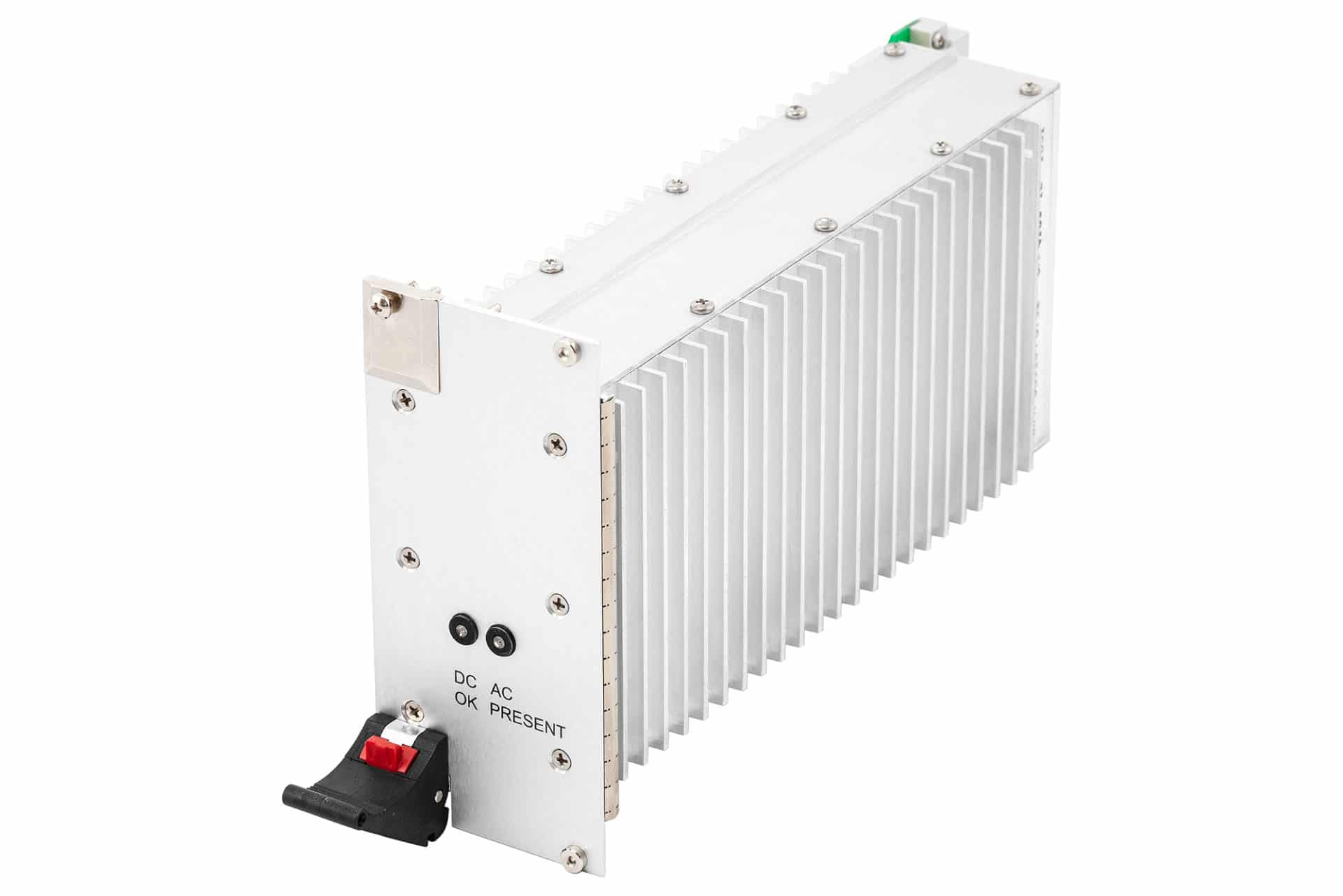

VME modified-standard 500 watt plug-in power module — **VME Modified-Standard.** 500 W in a plug-in card format.

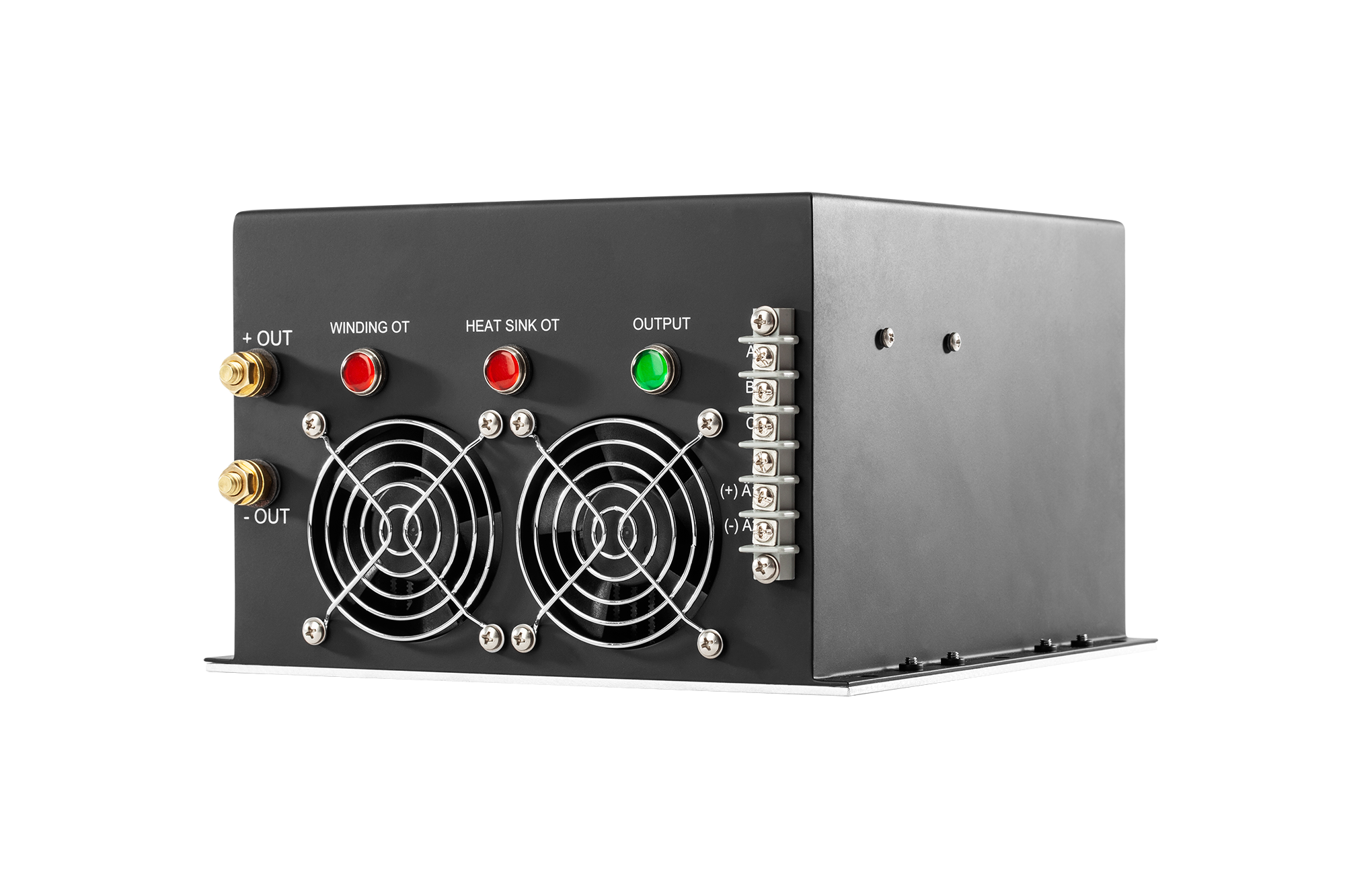

TR400 modified-standard TRU, single output, fan-cooled — **TR400 Modified-Standard TRU.** Single output, fan-cooled, with BIT.

Product range from a 6 kVA isolation transformer to board-mount transformers — **Wide Range of Products.** From a high power isolation transformer to board-mount magnetics.

Product Families

AC-DC power supplies: MIL-STD-1399 and 704 inputs, 461 EMI, 810/167/901 environmental; conformal-coated, staked assemblies built in house.
DC-DC converters: MIL-STD-704 and 1275 buses; precision regulation for sensitive loads.
DC-AC inverters: true sine wave, wide input and output configurations.
Transformer rectifier units: MIL-STD-1399 / 704 / DO-160 inputs; battery-charger options.
Transformers and Inductors: one of the largest MIL-PRF-27 QPL listings in the industry, plus modified and custom.
EMI filters and PFC front ends: sized to the invoked MIL-STD-461 methods and limits.

Standards We Build To

MIL-STD-704Aircraft Power

MIL-STD-1399Shipboard Power

MIL-STD-1275Ground Vehicle Power

MIL-STD-810Military Environments

MIL-DTL-901High-Impact Shock

MIL-PRF-27DLA Qualified Transformers

See the full list of power supplies and magnetics by military standard.

Engineering

Abbott Technologies designs are engineered down to the component: circuit, transformers and inductors, board, and enclosure, under the formal design controls of our AS9100D system. This not only allows for modifications with significantly reduced risk and cost, but also to control size, weight, and power directly, and keep a design supportable decades into a program. Behind the team sits a working library built order by order since 1961, so most new requirements can begin from a proven baseline. Tools include 3D solid modeling, computer-aided engineering, circuit design and PCB layout, and simulation.

Manufacturing

Production runs on an integrated ERP system capable of high and low volumes. Assembly to IPC-A-610 and J-STD-001, conformal coating and staking in house, ESD and FOD discipline at every bench, and 100% inspection.

Test

In house EMI and ESS capabilities conforming to most requirements of MIL-STD-461, MIL-STD-810, and DO-160, acceptance testing on calibrated equipment, and evidence packages matched to your review. Certifications and practices: Quality Assurance.

Sustainment and Obsolescence

Most power electronics manufacturers obsolete products on commercial timelines; platforms serve for decades. Abbott Technologies designs stay buildable under full configuration control to the component level with GIDEP-informed parts surveillance, and when another manufacturers’ units becomes unsupportable, we replace it. See Legacy Replacements.
